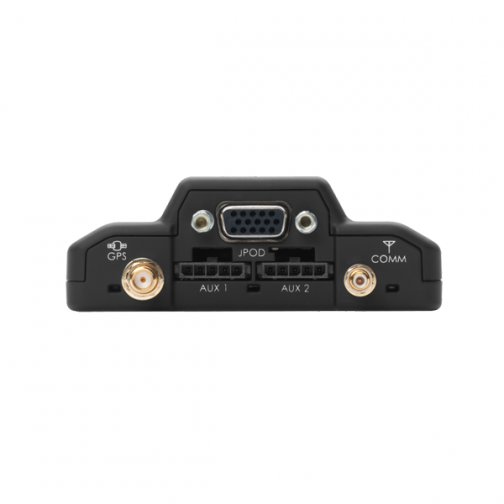

CalAmp LTE LMU-4200 Series

$221.21 – $261.77

A Full-Featured Telematics Gateway Built for Optimal Flexibility

The LMU-4200 is designed to support customers needing an array of vehicle interfaces. For example, the serial ports supply switchable power at selectable voltages to ease the installation of peripheral data devices. The optional jPODTM ECU (Engine Control Unit) interface reads and transmits heavy-duty engine condition and performance data such as engine temperature along with the fault codes to provide the best possible real-time picture of vehicle health.

NOTE: MOUNTING BRACKET INCLUDED. 5C888 HARNESS INCLUDED ON 4230 W/O JPOD

LMU-4233 DataSheet
Clear

Add to Wishlist

LMU-4200 Series

Market Applications
  • Domestic Fleet Management
  • Connected Vehicle Solutions
  • Cargo Monitoring
Features
  • Built-in Motion Sensor
  • Built-in Antenna for Easy Installation
  • Weatherproof (IP66)
  • Extensive Power Management
  • 2,000 Buffered Messages on Non-Rechargeable Battery
Compatible Accessories
5C875 Splice-in, 3-Wire Starter Disable Kit, with relay, 1ft
5C743-1 CABLE, DE 15 PIN HD M TO RP1226 14 PIN M (CAN+J1708+CAN2), 1 METER
5C888 Power Harness: 4-pin to 4-wire with Fuse
5C889 Power Harness: 22-pin to 20-wire I/O Harness, Non-Fused, 6″
5C896 Power Harness, Splice on OBII Port for Quick Connect
5C981 Power Harness, LMU-42xx to MDT7-P Android Tablet
5C420 Power Harness: 22-pin & 4-pin to 1-Bit Bus (2-pin), Switch/LED (4-pin), Buzzer (3-pin) and 3-wire Power Harness with Fuse, 6’4″
4C763 iButton Reader and Cable Assembly (use with 5C250 or 5C260), 4′
4C764 SWITCH/LED AND CABLE ASSY, 4 FT (USE WITH 5C250)
4C765 Buzzer and Cable Assy (use with 5C250 or 5C260), 2′
133688 Garmin 5-pin Serial Cable, Mini USB, 9′
134364-MDT12 Serial Adapter: 5-pin to DE9 Male (DTE)  with Switched Power and Selectable Voltage (12V default), 1′
134364-SER Serial Programming Cable: DE9 Female (DCE) to 5-pin Universal
RM1353-TB-04 Antenna: Roof Mount Antenna SMA/SMC, TriBand (Higher Accuracy Gain), 9′
IV1353-QB-02 Antenna: Window Mount, SMA/SMC, QuadBand, 9′
4A729-2J4841PGF-3 In-Vehicle Window Mount LTE Antenna
133568 Mounting Bracket, LMU-4230×3
134385 Temperature Sensor: 1-bit Bus, 4 leads, splice in.
134615-VPOD2 vPOD 5-pin Serial OBDII Adapter
134615-VPOD2R vPod2R, Ext OBDII Dongle, 5pin
134938-BT Bluetooth dongle
JPOD2-ACC-G1000 JPOD2, EXTERNAL DONGLE, TH CONNECTOR, 5-WIRE, GEN-HW
1BF112-453443CON Battery. LI-ION, 1000MAH, 3.7V
5C354F-1 VPOD2/VBU cable to be used w/LMU-4230 only
5C356-2 JPOD TO J1939 9 PIN DEUTSCH TYPE I MALE AND FEMALE ROUND, DE-15 MALE, THREADED Y CABLE (CAN+1708), 2 METERS
5C909-2 jPOD to J1939, Y Pass-through cable, 2 meters
5C909-5 jPOD to J1939, Y Pass-through cable, 5 meters
5C909L-2 jPOD to J1939, Y Pass-through cable, Low Profile, 2 meters
5C941S SERIAL CABLE ADAPTER, 5-PIN MOLEX TYPE TO 4-PIN ROUND SEALED CONNECTOR (FOR TTU-3640)
5C970-2 jPOD to 6 Pin J1708 Y Cable, 2 Meter
5C971-1 jPOD to J1962 Light Duty Ribbon, Extension Cable, 1 Meter (Not CAN compliant); Special Order
5C971-2 jPOD to J1962 Light Duty Ribbon Extension Cable, 2 Meter (Not CAN compliant) – Spcl Order
5C972-2 jPOD to J1962 CAN-only HINO Only! Y-cable, 2 Meter
5C973-2 JPOD TO J1962 Y CABLE VOLVO/MACK, 2 METER
5C990-2 jPOD TO J1962 Y CABLE
5C992-2 Revised 5C909L cable w/type 2 (green) connectors, 500K, Deutsch 9pin, J1708 on F/G pins
5C991-2 OBD extension cable – OBD compliant
5C993-2 JPOD To Deutsch 9 Pin J1939 Type 2, Threaded Y Connector
5C994-2 JPOD TO DEUTSCH 9 PIN J1939 TYPE 2 CONNECTOR (REPLACES 5C909L), 500K, 2ND CAN PROTOCOL ON F/G PINS, SQUARE FLANGE END
5C994R-2 2JPOD To Deutsch 9 Pin J1939 Type 2 connector
5C995 OBD extension cable – OBD compliant
5C997 VEHICLE DIAGNOSTIC CABLE, VOLVO 2014 AND ABOVE, 2 METERS
FOB10-BL300-G1000 Bluetooth, 3-Button Keyfob (require LMU with Bluetooth)
Weight 1 lbs
Dimensions 7 × 5 × 2 in
